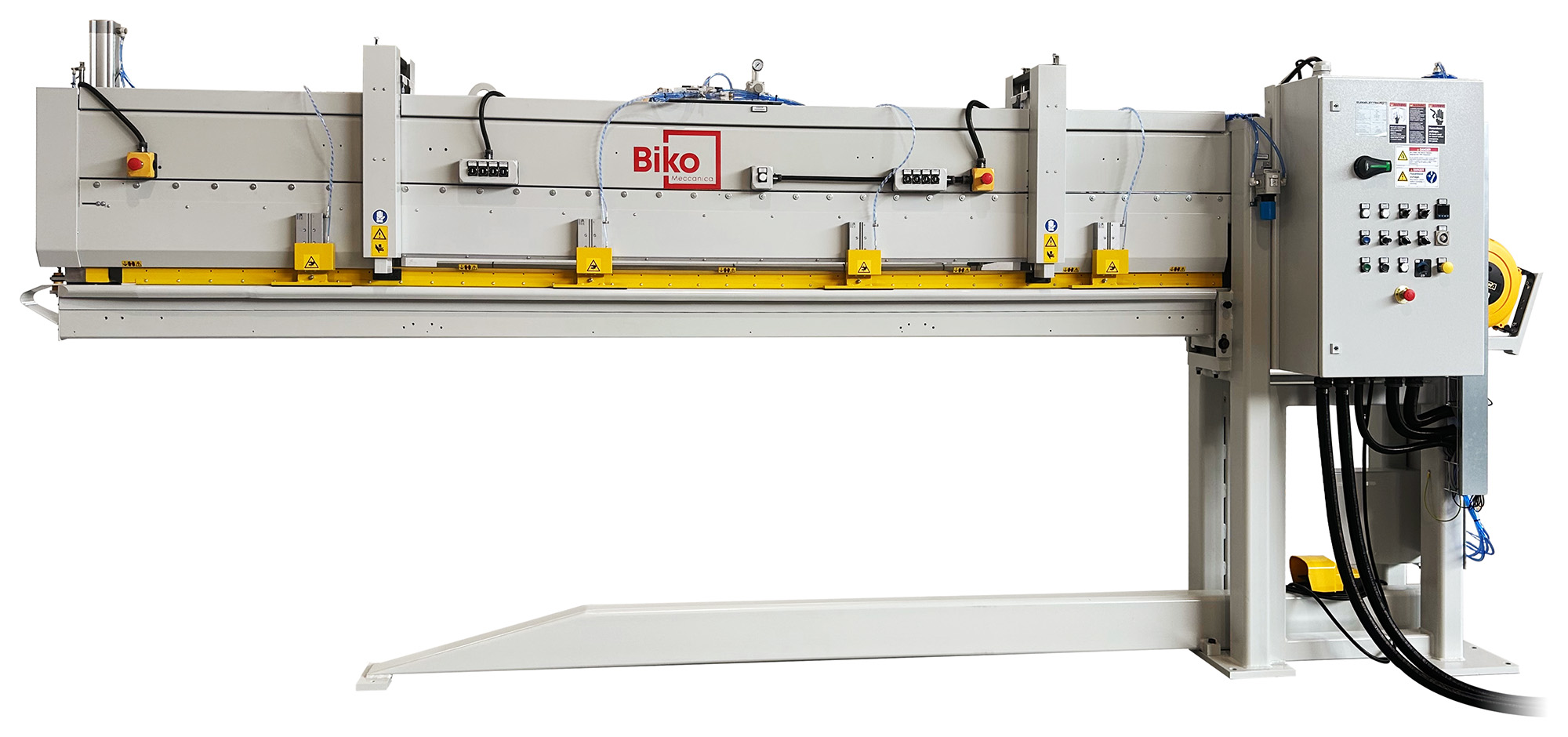

Roller Press Type SPR

The roller press type SPR is designed to press the joints of cloth and paper wide belts. Even though ideal to process wide belts, this machine can also press narrow belts. The SPR machine is indicated for converters with medium productions.

Technical Data

• Pneumatic pressure up to 1200 daN at 6 bar
• Max. joint length: 2,420 mm (SPR-2500), 3,500 mm (SPR-3500), 4,000 mm (SPR-4000)
• Automatic front locking device
• Full automatic cycle, with press roll moving at variable speed
• Press bar provided with heater and thermostat (temperature adjustable up to 80 °C)

Options

• Removable side telescopic supports for the belt
• Pneumatic holders to work up to 4 narrower belts
• Vacuum system for easiest joining of the belts on the press bar

Size and Power (SPR-2500 Model)

• Overall machine dimensions: 4.4 x 0.9 x 2.2 m
• Approx. weight: 1,500 kg
• Installed power: 5.5 kW
• Air consumption: 15 Nl/cycle

Size and Power (SPR-3500 Model)

• Overall machine dimensions: 5.5 x 0.9 x 2.2 m
• Approx. weight: 1,700 kg
• Installed power: 7 kW
• Air consumption: 15 Nl/cycle

Size and Power (SPR-4000 Model)

• Overall machine dimensions: 6.6 x 0.9 x 2.2 m
• Approx. weight: 2,100 kg
• Installed power: 7 kW
• Air consumption: 15 Nl/cycle
